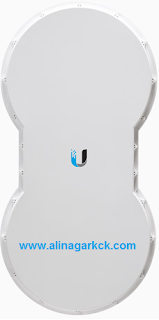

Ubiquiti AirFiber-5 5GHz,100Km+,1Gbps+ Point to Point Radio Access Point:
Ubiquiti AirFiber-5,AF5,5GHz,1Gbps+,100Km+,FDD,Point to Point Radio AP:
Ubiquiti AirFiber-5 Is A Revolutionary Point-To-Point Radio WiFi AP system.
5GHz With 100Km+ Range At 1Gbps+ Throughput,The AirFiber-5 Advantage Of Popular WorldWide Frequencies.
Ubiquiti AirFiber-5,AF5,5GHz Features:
Product Model Number:AF-5-LINK
1Gbps+Throughput
50MHz Channel
Full Duplex
100Km+ Range
New Brand Alignment UI
Industry disruptive price point
The Ubiquiti AirFiber-5,AF5 Has A New Brand Alignment User Interface With Modulation Rate Display And Local/Remote Unit RSSI.
Ubiquiti airFiber-5 Specifications:
General
Operating Frequency
AF5
FCC 15.247,15.407,IC RSS 210
ETSI EN 301 893,EN 302 502
Other Regions
AF5U
FCC 15.247, IC RSS 21
ETSI EN 302 502
Other Regions
5470-5600MHz,5650 - 5850 MHz
5470-5875MHz
5470-5950MHz
5725-5850MHz
5725-5875MHz
5725-6200MHz
Dimensions:938.4*468.4*281.4MM
Weight:16KG With Mount
Max.Power Consumption:40W
Power Supply:50V,With 1.2A PoE GigE Adapter
Power Method:Passive Power over Ethernet 42-58VDC(POE)
Certifications:CE,FCC,IC
Mounting:Pole Mount Kit
Wind Loading:194LBF@125MPH
Wind Survivability:125MPH
Operating Temperature:-40-55°C
LEDs:12 Status LED'S
Data Port:Link/Activity
Data Port:Speed
Management Port:Link/Activity
Management Port:Speed
GPS:Synchronization
Master/Slave
Link Status
Modulation Mode:0.25*-4x,6x,8x,Overload
Remote and Local Displays:Calibrated Signal Strength
Interface
Data Port:(1)10/100/1000Ethernet Port
Management Port:(1)10/100Ethernet Port
Auxiliary Port:(1)RJ-12, Alignment Tone Port
System
Maximum Throughput:1.0+GBPS
Maximum Range:100+KM(Dependent on Regulatory)
Packets per Second:1+Million
Encryption:128-BitAES
Forward Error Correction:164/205
Cyclic Prefix:1/16 Fixed
Uplink/Downlink Ratio:50%Fixed
Radio Frame:Synchronization GPS
Dynamic Frequency Selection
CE,FCC/IC
CE,FCC/IC Not Applicable
Radio Frequency
GPS:GPS Clock Synchronization
Transceiver
EIRP~50DBM(Dependent on Regulatory And Frequency Band)
Frequency Accuracy:±2.5PPM Without GPS Synchronization,±0.2PPM With GPS Synchronization
Channel Bandwidth:50MHz
Modulation:256QAM MIMO
64QAM MIMO
16QAM MIMO
QPSK MIMO
½ Rate QPSK xRT
¼ Rate QPSK xRT
Split Antenna
TX Gain:23DBI
RX Gain:23DBI
Beamwidth:6
Front-to-Back Ratio:70DB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation>>28DB
