Ubiquiti EdgePoint Router WISP Control Point | EP-R8 | Router

Ubiquiti EdgePoint EP-Router WISP Control Point:

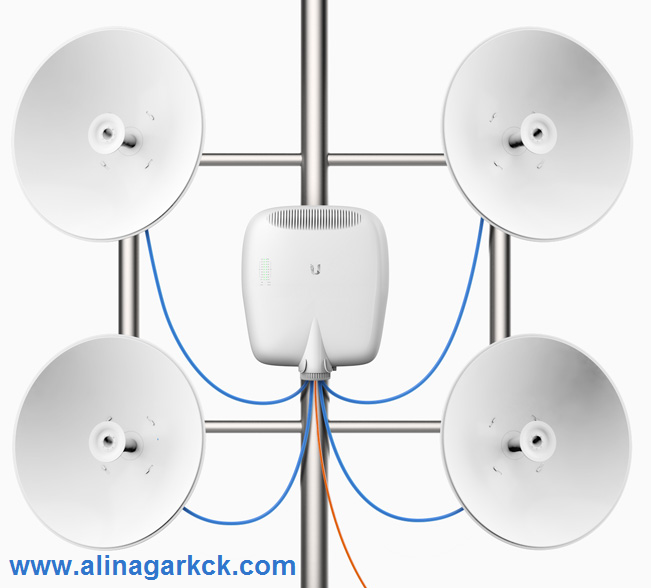

Ubiquiti EdgePoint EP-Layer-3 Router Is WISP Control Point With Intelligent FiberProtect.Ubiquiti EdgePoint EP Is The First Specific-Application Designed WISP Control Point,EdgePoint combind Advanced Routing Of EdgeMAX With Fiber and Versatile Powering.

Ubiquiti EdgePoint EP-Layer-3 Router WISP Control Point Features:

All-in-One Design

Weatherproof Enclosure for Outdoor Use
Powerful Routing or Switching Features
Fiber Backhaul Capability
A Single, Compact Controller Eliminates Clutter And excessive maintenance.
Ubiquiti EdgePoint(EP-R8)Layer-3 Router Six RJ45 Ethernet Ports And Two RJ45-SFP Ethernet ports.

Bottom Panel:

Power Options:54VDC,6A Terminal Block/Dual PoE Input
Port:(1)Console Port
Data Ports:(6)RJ45 Ports(2)Combination RJ45/SFP Ports
Nine RJ45 Ports PoE:
PoE Input
No Data-(1)54V,1.5A
(1)54V,1.5A
PoE Output(2)54/24V,1.4A(Passive PoE)
Output Ports:(5)24V,0.7A(Passive PoE)

Cabling Protection:

Strain Relief For Fiber-Optic Strands
Cable Sleeve And Option For Conduit

Back Panel:

Lanyard Loop Ease Installation
Slot for PicoStation-M2HP Allow For Wireless

Management:

Pole-Mount Bracket
Ground Bonding Point
PoE compatibility.

User Interface:

EdgePoint Have graphical User Interface For Setup And Control, Via Network Port And Web Browser.User Friendly Interface Intuitive Management With Virtual View Of Ports.Display Physical Connectivity,Speed,Status.

Ubiquiti EdgePoint Specifications:

Overview

Dimensions:326.6*382.7*88.8MM(12.86*15.07*3.50")
Wall-Mount:326.6*382.7*105.5MM(12.86*15.07*4.15")
Weight:3.4KG(7.50 lb)
Wall-Mount:3.8KG(8.38 lb)
Max-Power Consumption:40W
Power Input:
(1)DC Terminal Block Or
(2)RJ45 PoE In and eth0(Self-Correcting Polarity Protection on DC Terminal Block Only,Diode ORed Protection on All Power Inputs)
Power Supply:
Min:54V/0.8A Excludes PoE Output Power VDC Input:54VDC,6A
Passive PoE:
(2)54V/1.5A,4-Pair Passive PoE,Eth0 and PoE In is DC Only, No Data
Passive PoE Output:
(2)54V//24V/1.4A,4-Pair Passive PoE,eth1 - eth2
(5)24V//0.7A,2-Pair Passive PoE, eth3 to eth7
Monitoring Power:
(1)DC Terminal Block,Input Power
(2)RJ45,PoE In and eth0,Input Power
Supported Voltage Range:56/42VDC
Button:Reset
LEDs:
System:Power
eth0:Speed/Link/Activity
eth1 to eth7:Speed/Link/Activity,PoE
SFP:Speed/Link/Activity

Ports:

Serial Console Port:(1)RJ45 Serial Port
PoE In Port:(1)RJ45 Port
Data Ports:(6)10/100/1000 RJ45 Ports(2)10/100/1000 RJ45/SFP Combination Ports
Processor:Dual-Core 600 MHz,MIPS64 with Hardware Acceleration for Packet Processing
System Memory:2 GB DDR3:1600RAM
Code Storage:4GB
Certifications:CE, FCC, IC
Pole/Wall Mount:Yes
Operating Temperature:-20to65°C(-4to149°F)
Operating Humidity:10-90%Noncondensing
