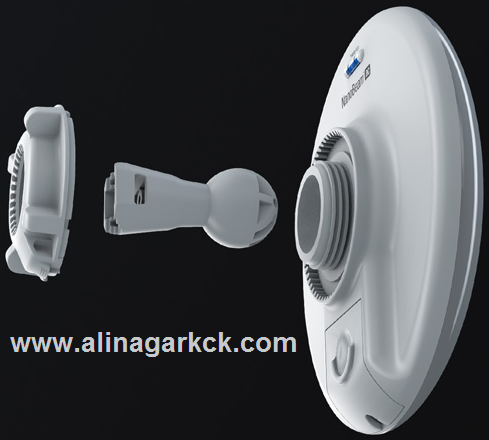

Ubiquiti airMAX NanoBeam AC 5Ghz:
NBE-5AC-19 19dBi(5Ghz):
Ubiquiti NanoBeam AC Directs a Tighter Beamwidth, Focus In One Direction.NanoBeam AC Blocks And Spatially Noise Filters,Noise Is Improved.
NanoBeam AC Features:
Product Model Number:NBE-5AC-19
Frequency:5 GHz
Throughput:450+Mbps
Beamwidth maximizes Noise Immunity
Innovative Mechanical Design
High-Speed Processor for Superior Performance
Antenna Create A More Efficient And Compact CPE.NanoBeam AC Maximum Gain Out Of The Small Footprint.High Performance And Innovative Form Factor, the NanoBeam ac is cost-effective.
Ubiquiti NanoBeam AC Specifications:
System
Processor:Atheros MIPS 74Kc,720 MHz
Memory:128MB DDR2, 8MB Flash
Networking Interface:(1)10/100/1000Ethernet-Port
Wireless Approvals:FCC, IC, CE
RoHS Compliance:Yes
NBE-5AC-19 Physical
Dimensions:189*189*125MM
Weight:0.530KG
Power Supply:24V,0.5A Gigabit PoE
Power Method:Passive PoE
Max Power Consumption:8W
Gain:19DBI
Operating Frequency:Worldwide
Wind Loading:45.4 N@200km/h
Wind Survivability:200km/h
LEDs:1-Power,1-LAN,4-WLAN Signal Strength LEDs Software-Adjustable
Channel Sizes:PtP Mode,PtMP Mode,Polarization Dual Linear,
Outdoor UV Stabilized Plastic,
Mounting:Pole-Mount,Wall-Mount Kit
ESD/EMP Protection Air:±24 kV,Contact:±24kV
Operating Temperature:-40-70°C(-40 to 158° F)
Operating Humidity:5-95%
Noncondensing:Salt Fog Test,
Equivalent:MIL-STD-810 G Method 509.5
Vibration Test:IEC 68-2-6
Temperature Shock Test:IEC 68-2-14
UV Test:IEC 68-2-5 at 40°C(104° F)
Equivalent:ETS 300 019-1-4
Wind-Driven Rain Test:ETS300 019-1-4,
Equivalent:MIL-STD-810 G Method 506.5
5150-5875MHz
5725-5850MHz
10/20/30/40MHz
10/20/30/40/50/60/80MHz
